Spider Crane Hire Norfolk

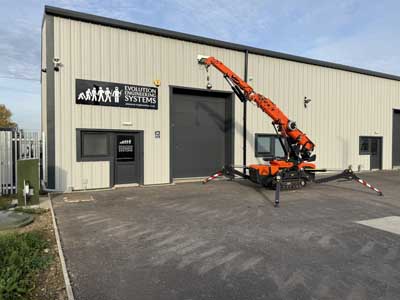

Spider Crane Hire Norfolk – Jekko SPX532.2 Hybrid Mini Crane

Evolution Engineering Systems is proud to introduce the latest addition to our lifting fleet — the Jekko SPX532.2 Hybrid Mini Spider Crane. Compact, powerful, and exceptionally versatile, this advanced crane combines the convenience of diesel operation with the clean efficiency of electric power. Designed for precision lifting where space, noise or surface conditions make conventional cranes impractical, it offers outstanding performance for all Spider Crane Hire across Norfolk and beyond.

Compact Design, Outstanding Reach

With an overall height of just 1.99 metres, a length of 3.14 metres, and a narrow track width of 760 mm, the SPX532.2 can easily pass through standard double doors or narrow site access points. Despite its compact footprint, it delivers a maximum lifting capacity of 3,200 kg and a maximum working height of 17 metres when fitted with its optional jibs. The main boom extends from 2.6 m to 10.3 m, while the full 360° slewing radius and proportional control system make it ideal for tight or confined spaces.

Hybrid Power – Diesel or Electric

This version of the Jekko SPX532.2 is equipped with a hybrid power system, offering both diesel and electric operation for maximum flexibility on site. The diesel engine provides full mobility and lifting capability in outdoor or remote environments, while the 48-volt electric mode allows for zero-emission operation indoors or in noise-sensitive areas such as factories, shopping centres or heritage buildings. Our Spider Crane Hire service allows operators to switch seamlessly between power sources, ensuring efficient performance in any setting.

Smooth Hydraulics and Intelligent Control

The advanced hydraulic system operates at up to 230 bar, providing precise, stable lifting at every boom angle. The electronically managed winch delivers up to 1,050 kg line pull, with variable rope speeds between 16 m/min and 45 m/min, allowing accurate control even when working close to obstacles or glass façades. The onboard load moment indicator (LMI) constantly monitors lifting performance and stability, helping operators maintain safe working limits at all times.

Configurable for Every Lifting Task

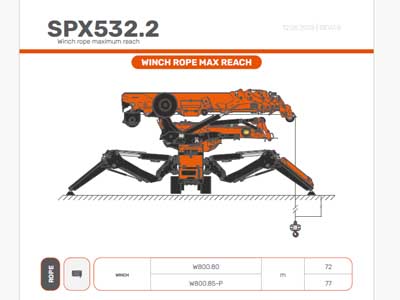

The SPX532.2 can be equipped with a range of interchangeable jibs to suit different lifting applications:

• JIB1200GX – Handles up to 1,200 kg, reaching a total height of 12.6 m with a 10.4 m radius.
• JIB1000.2H1MX – A hydraulic fly-jib providing up to 17 m total height and 1,000 kg capacity, ideal for complex multi-angle lifts.
• JIB500GR – Lightweight and versatile, designed for smaller or more delicate lifting up to 500 kg.

The outriggers can be positioned asymmetrically, automatically monitored for ground pressure and stability. All load data complies with EN 13000:2014, guaranteeing accuracy and safety in every configuration.

And, by offering a hybrid for our Spider Crane Hire service, you get the best of both worlds for power – electric and diesel.

Mobility and Versatility

The Jekko’s rubber-tracked undercarriage combines agility with a low ground bearing pressure of just 0.70 kg/cm², making it suitable for use on delicate surfaces such as paving or warehouse floors. It travels at up to 2.7 km/h and climbs gradients of 20° (36%), ensuring easy access to difficult sites. With its compact design, proportional controls and 360° slewing, the SPX532.2 can perform lifts that would be impossible for larger cranes in the same space.

Safety, Reliability and Remote Control

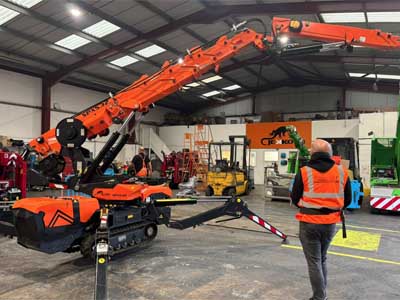

All your Spider Crane Hire operations are managed by a fully remote-controlled system, giving the operator a clear view of the load and working area for maximum precision. Safety systems include automatic overload protection, emergency stop controls and full self-diagnostics. The crane is rated for wind speeds up to 13.8 m/s and functions in ambient temperatures from –10 °C to +40 °C, ensuring reliable year-round performance.

Hire with Operator – Evolution Engineering Systems

Evolution Engineering Systems provides Spider Crane Hire in Norfolk with a qualified and experienced operator, available for daily, weekly or project-based hire. Whether for glazing, steel erection, plant maintenance or specialist lifting in restricted environments, the Jekko SPX532.2 hybrid mini crane offers the perfect balance of power, precision and flexibility.

Genie 1932 Scissor Lift Hire

Evolution Engineering Systems also offers Genie GS-1932 scissor lifts for safe and efficient access at height. Compact and manoeuvrable, the Genie 1932 is ideal for indoor or outdoor maintenance, installation, and construction work. With a working height of 7.8 metres and a lifting capacity of 227 kg, it provides a stable platform for two operators and their tools. Measuring just 0.81 metres wide, it easily passes through standard doorways and fits into tight spaces, making it perfect for warehouses, factories, and refurbishment projects. The electric drive system ensures quiet, emission-free operation, while non-marking tyres protect interior floors. Available for short- or long-term hire across Norfolk, the Genie 1932 combines reliability, safety, and versatility for all elevated work requirements.
